Counter LED display

Pixel Pitch (mm): 1.8
Standard Display Size (mm): 363.72×1513

Integrated Display

The counter LED display integrates lighting, digital content, and product showcasing into a single smart solution. With built-in LED panels, it enhances the presentation effect and creates a more attractive display experience for featured products.

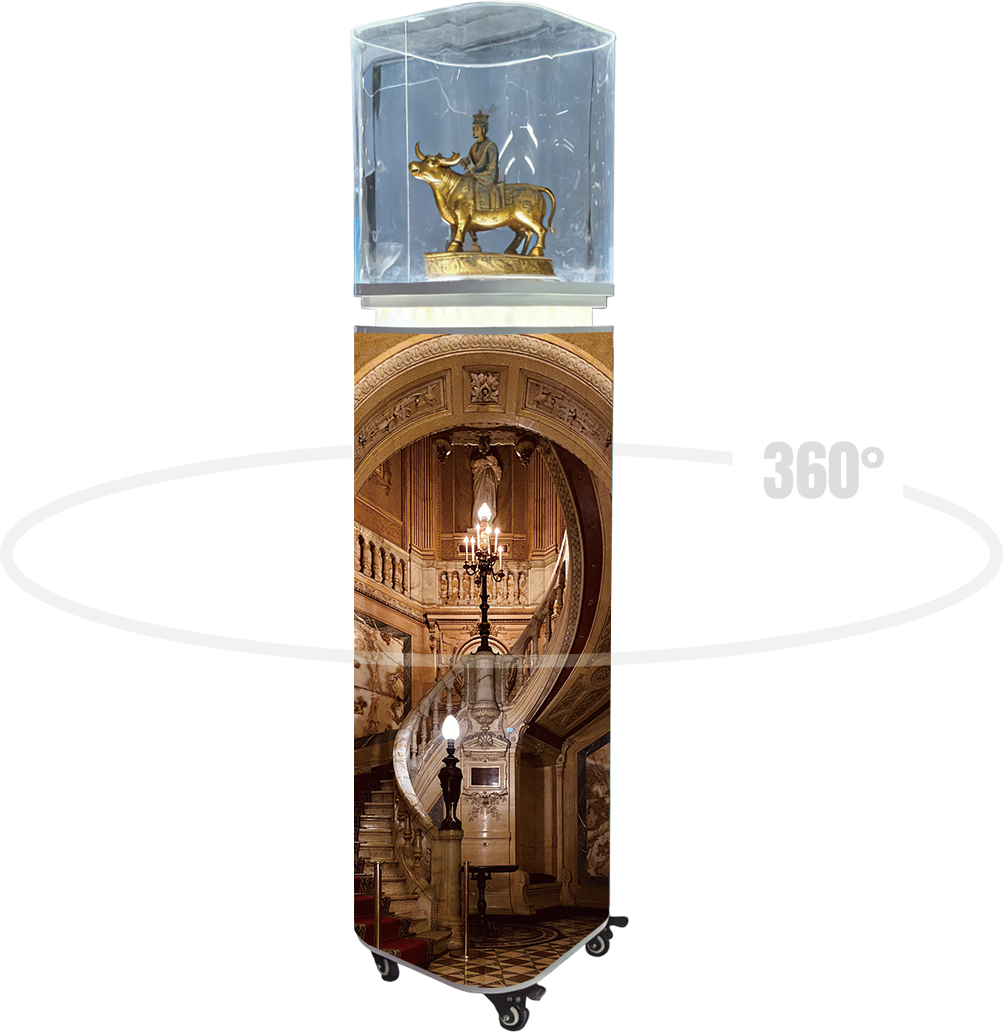

360° Full-View Presentation

Delivering a complete 360° viewing experience, the display ensures clear and vibrant visuals from all directions, allowing your content to capture attention from any viewing angle.

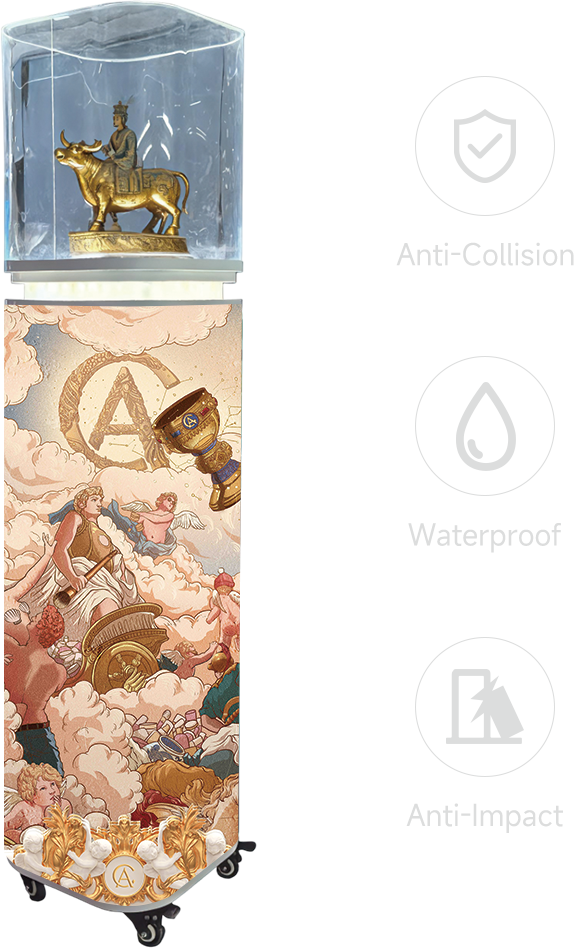

GOB Protection Technology

Equipped with advanced GOB coating, the display features enhanced durability with excellent resistance to impacts, water, and scratches, ensuring reliable performance and long-lasting operation.

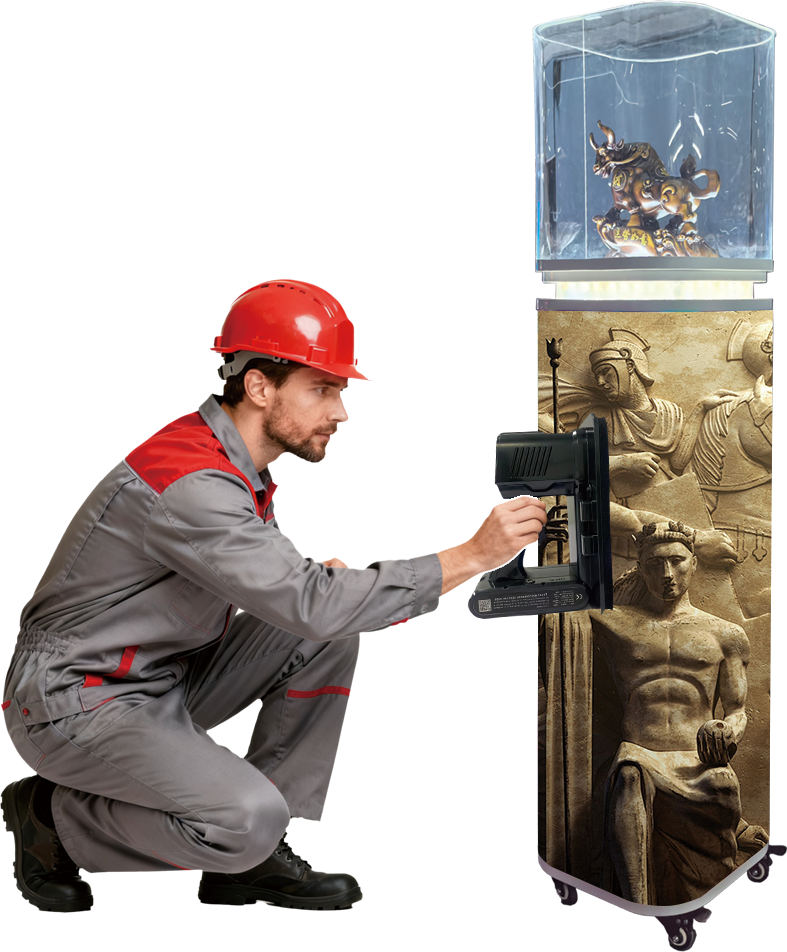

Front Maintenance Design

The display features a front-access maintenance design, allowing modules to be easily removed, replaced, and serviced from the front for quicker and more convenient maintenance.

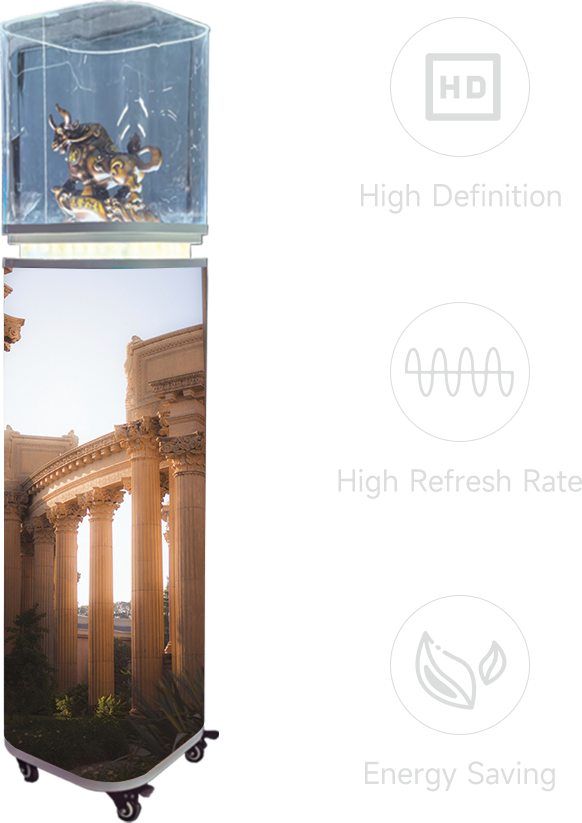

Ultra-HD Performance

Featuring a 3840Hz high refresh rate, the display delivers sharp image details, smooth video playback, and enhanced visual effects while maintaining efficient power consumption.

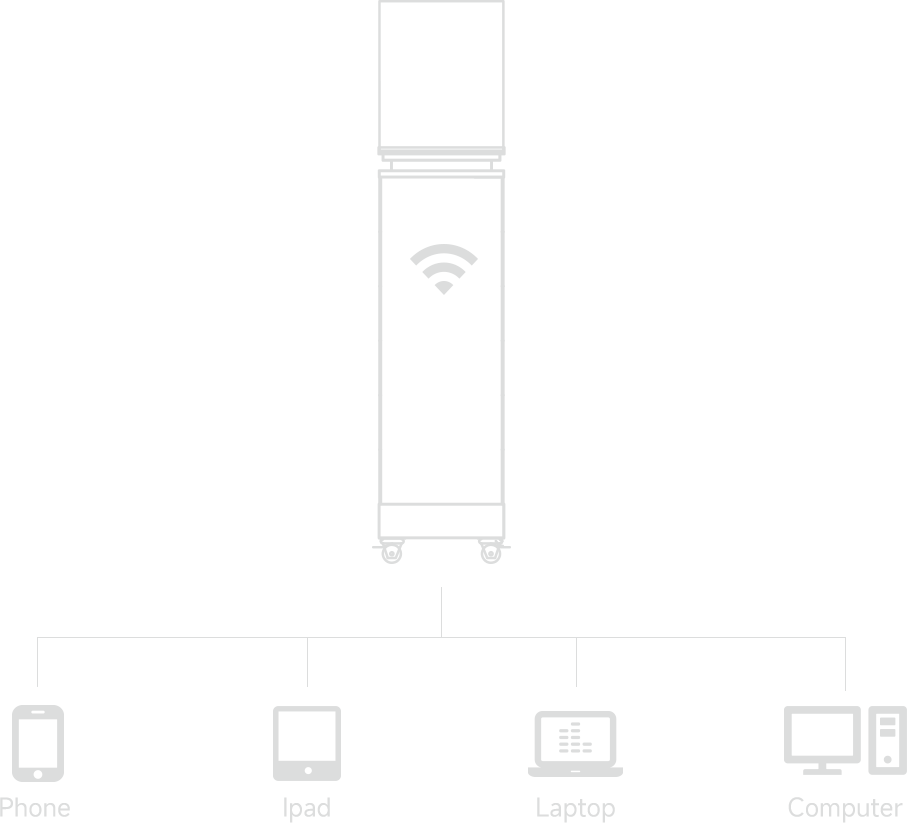

Smart Control System

Supporting wireless mobile control, the display can be easily managed through WiFi, hotspot, or a mobile app. Upload images, videos, and update content instantly with a simple one-click operation.

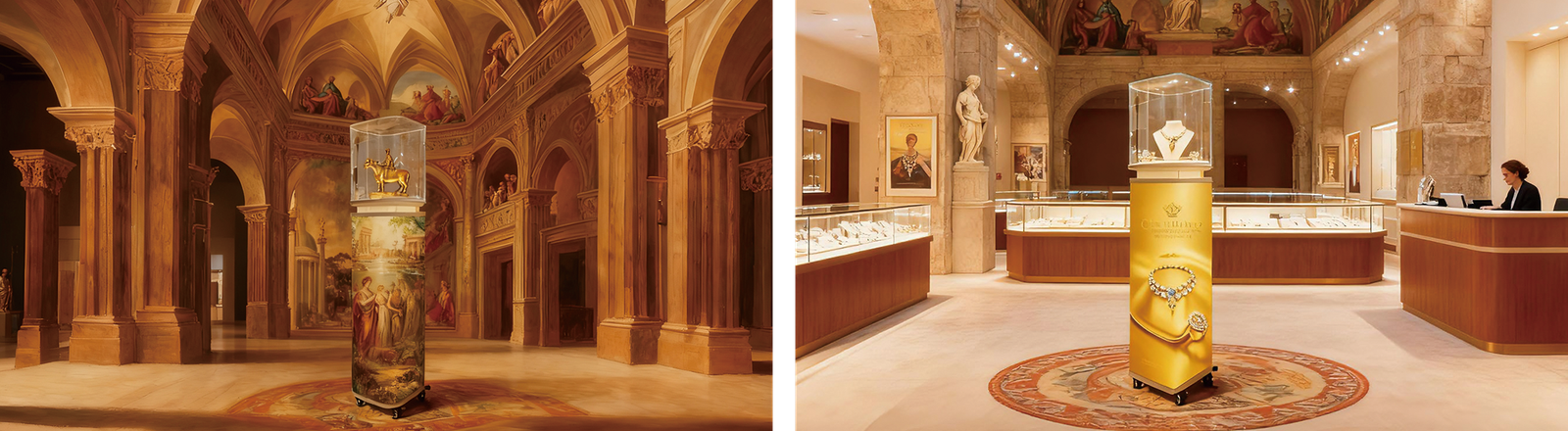

Application Scenarios

Ideal for retail displays, exhibition installations, museum showcases, and various commercial environments, the display provides an engaging and versatile visual solution for different applications.



Product Specifications

Items C18
Pixel Pitch (mm) 1.8
GOB Yes
Screen Pixles 288,906
Module Size (mm) 320×160×5.2
LED Type SMD1515
Module Resolution (W×H) 172×86
Module Quantity 4×6
Display Size (mm) 363.72 (four-sided)×960+Transparent Showcase
Screen Size (mm) 363.72×1,513
Screen Resolution (W×H) 688×516
Scan Mode 1/43
Brightness (cd/m²) 500–650
Refresh Rate (Hz) 3,840
Grayscale (bit) 12-16
Maintenance Front
Control System Novastar / Mooncell
Protection Level IP43 (front)
Average Power Consumption (W) 600–700W
Input Voltage 110–220V
Operating Environment -20 ℃ ~ 60 ℃, 10% ~ 85% RH
