LED Poster Display

Pixel Pitch (mm) : 1.25 / 1.53 / 1.86 / 2.5 / 3

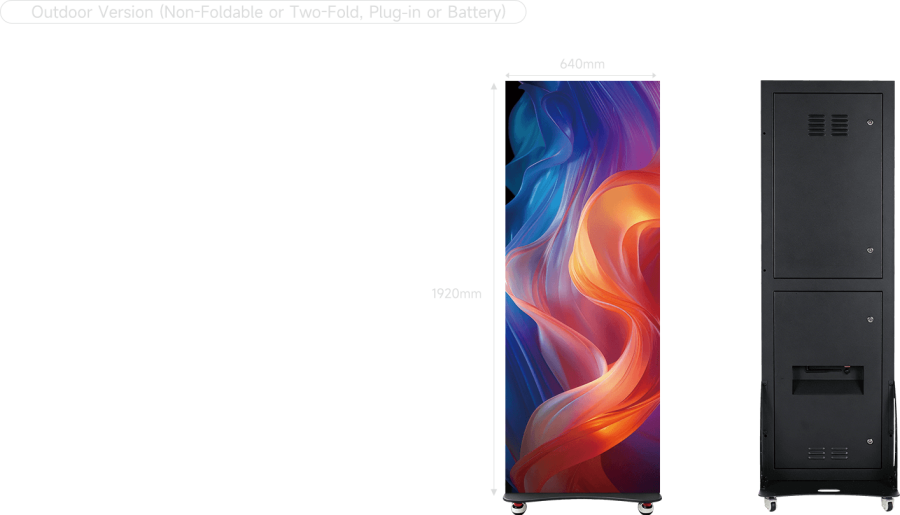

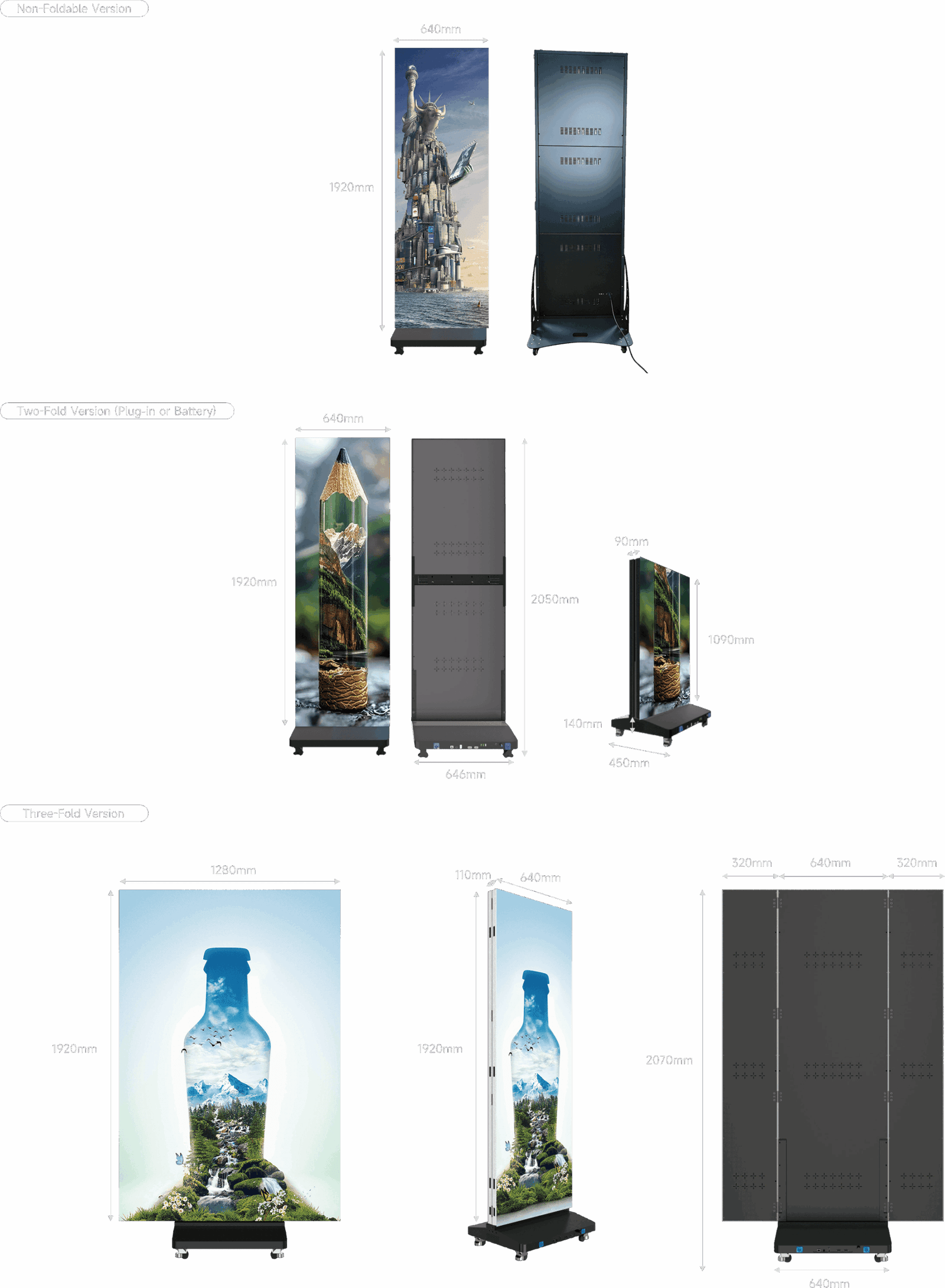

Versions: Non-Foldable / Two-Fold / Three-Fold / Outdoor

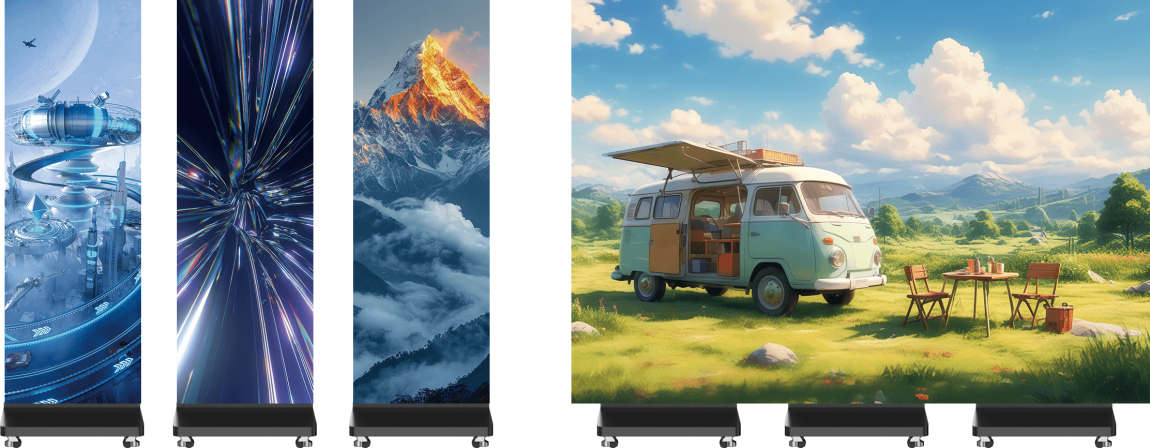

Versatile LED Poster Display

The MSC Series LED poster display comes in four different models, including the standard fixed version, two-fold design, three-fold design, and outdoor model. These options provide flexible solutions to meet various application requirements and display scenarios.

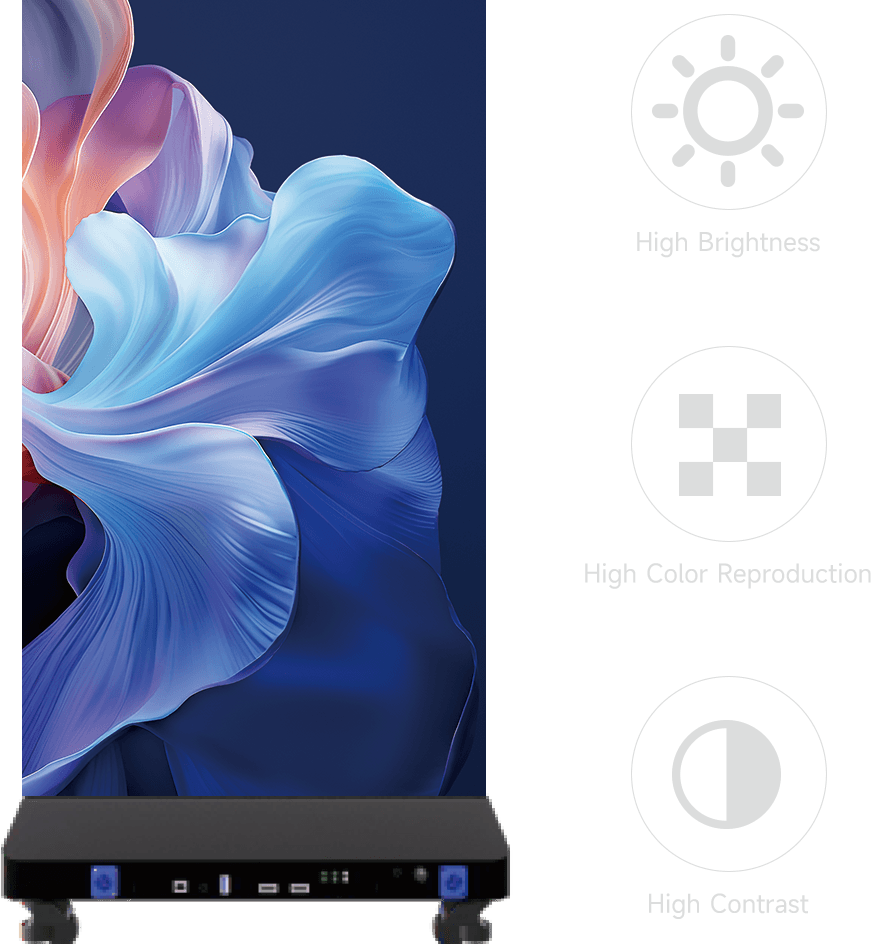

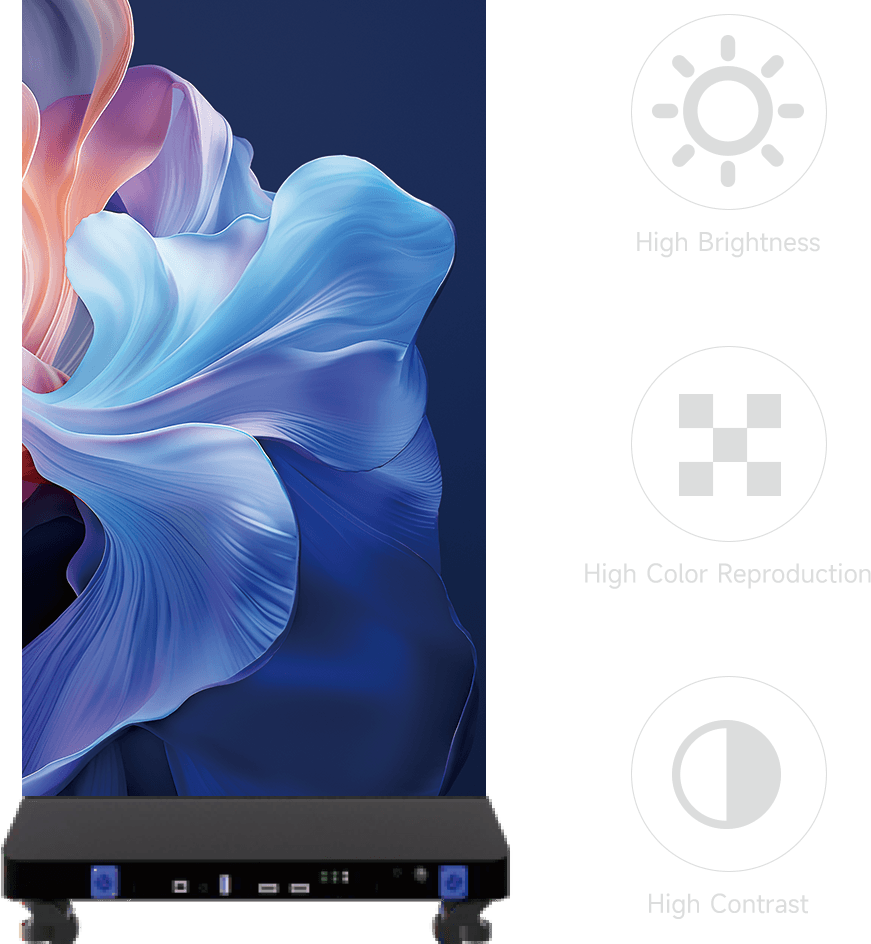

Stunning Visuals

With high resolution, impressive brightness, accurate color reproduction, and enhanced contrast, the MSC Series delivers sharp, vivid, and highly detailed images for an outstanding viewing experience.

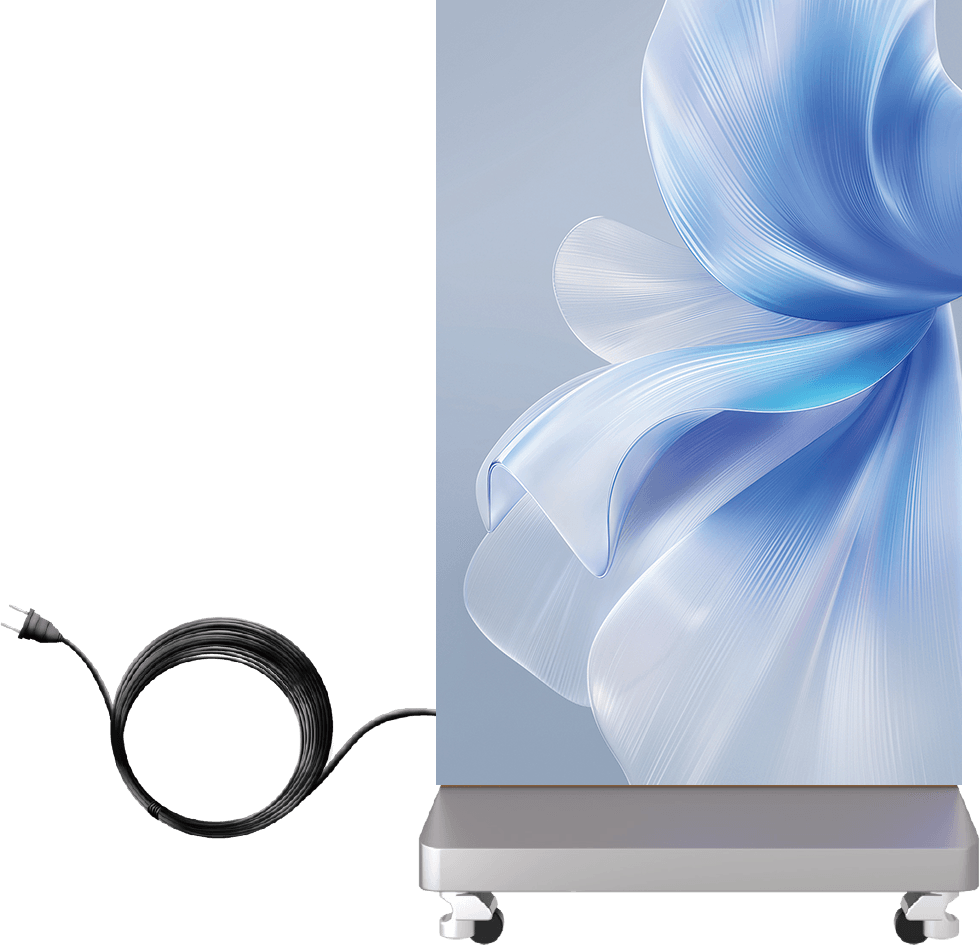

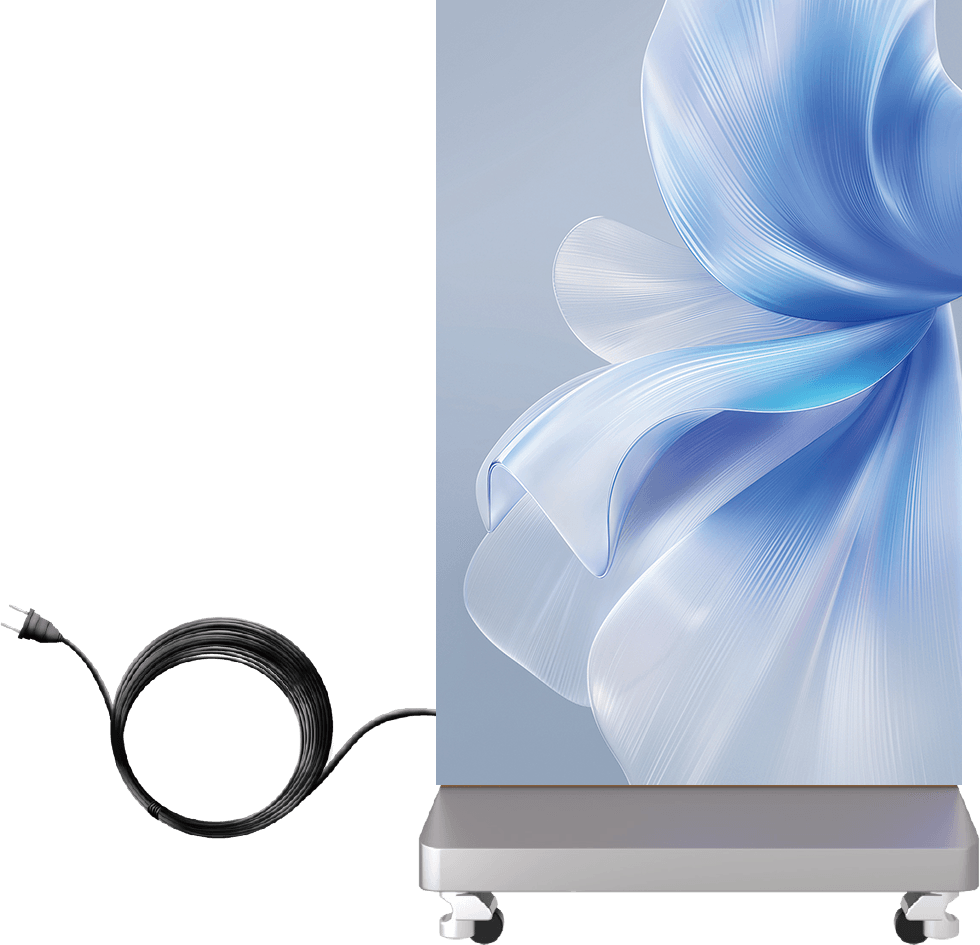

Plug and Play

No complicated installation is needed — simply turn on the display and start using it immediately. Delivered as a fully assembled solution, the MSC Series provides a convenient and effortless user experience without requiring professional setup.

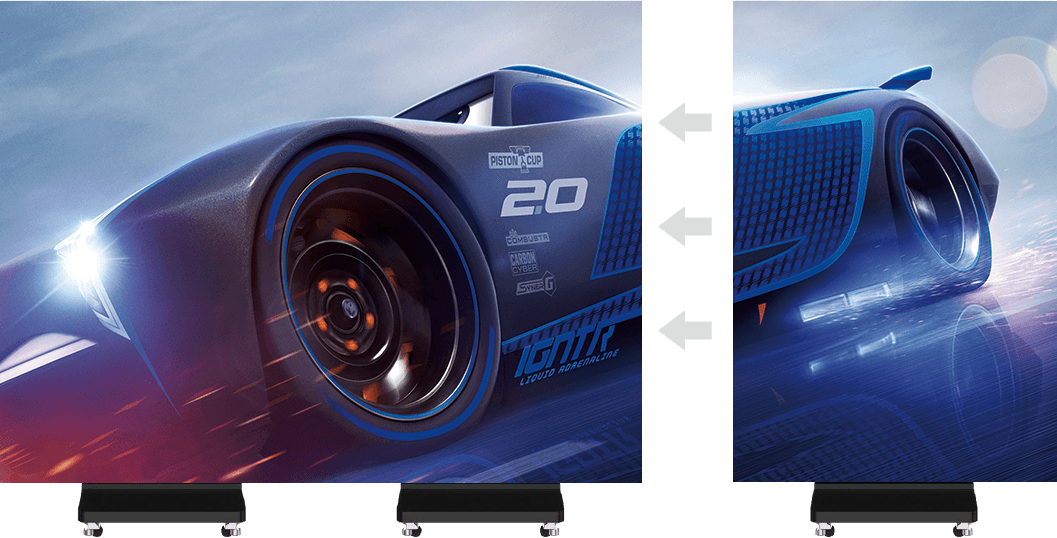

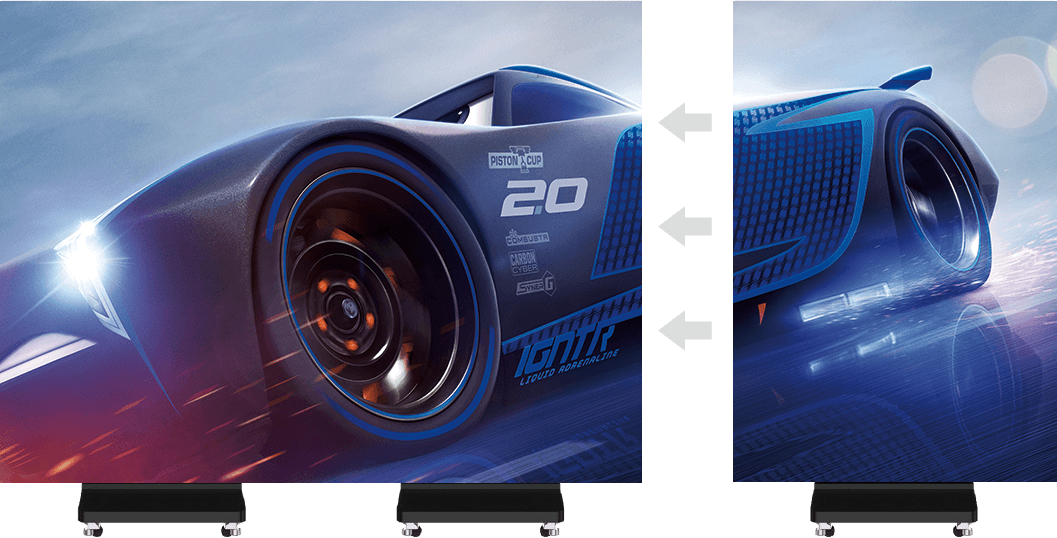

Seamless Splicing

The display can be used independently as a single unit or combined with multiple units to create a larger seamless screen. This flexible design allows it to adapt to various applications and display requirements.

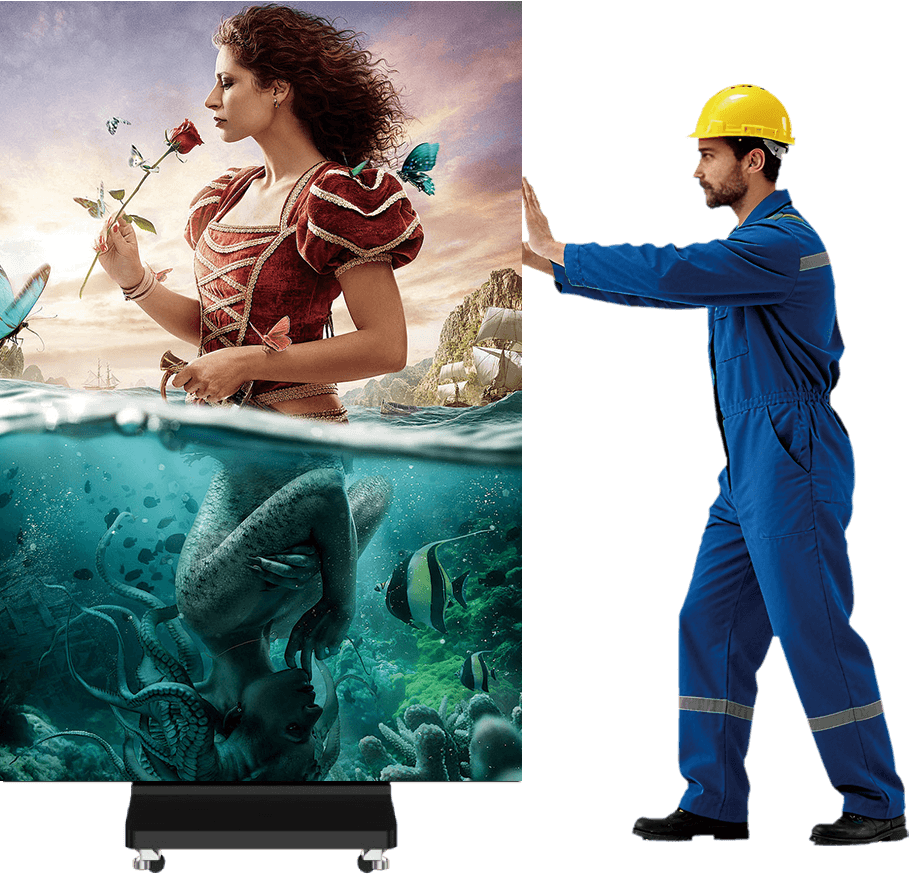

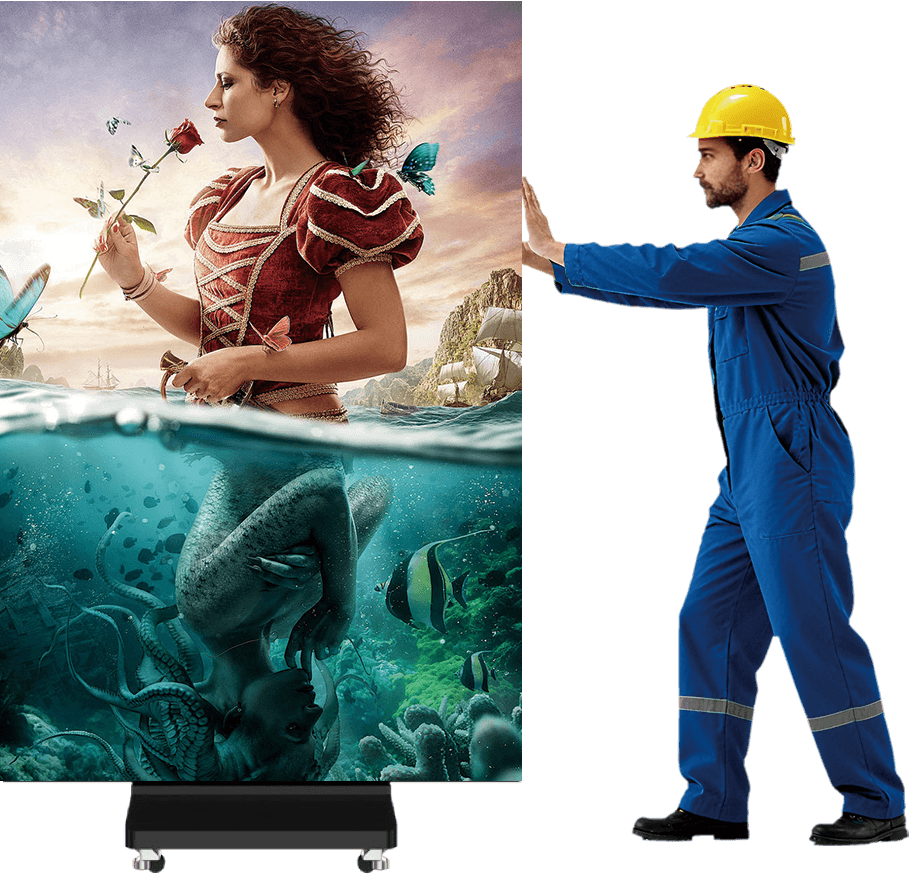

Universal Wheel Design

Featuring four 360° swivel wheels, the display can be moved and adjusted effortlessly, allowing flexible positioning across different environments and application scenarios.

Synchronous & Asynchronous Modes

Supporting both synchronous and asynchronous operation, the MSC Series offers flexible content playback options. It can run offline content in a continuous loop for advertising or synchronize with live broadcasts, conferences, and other real-time events.

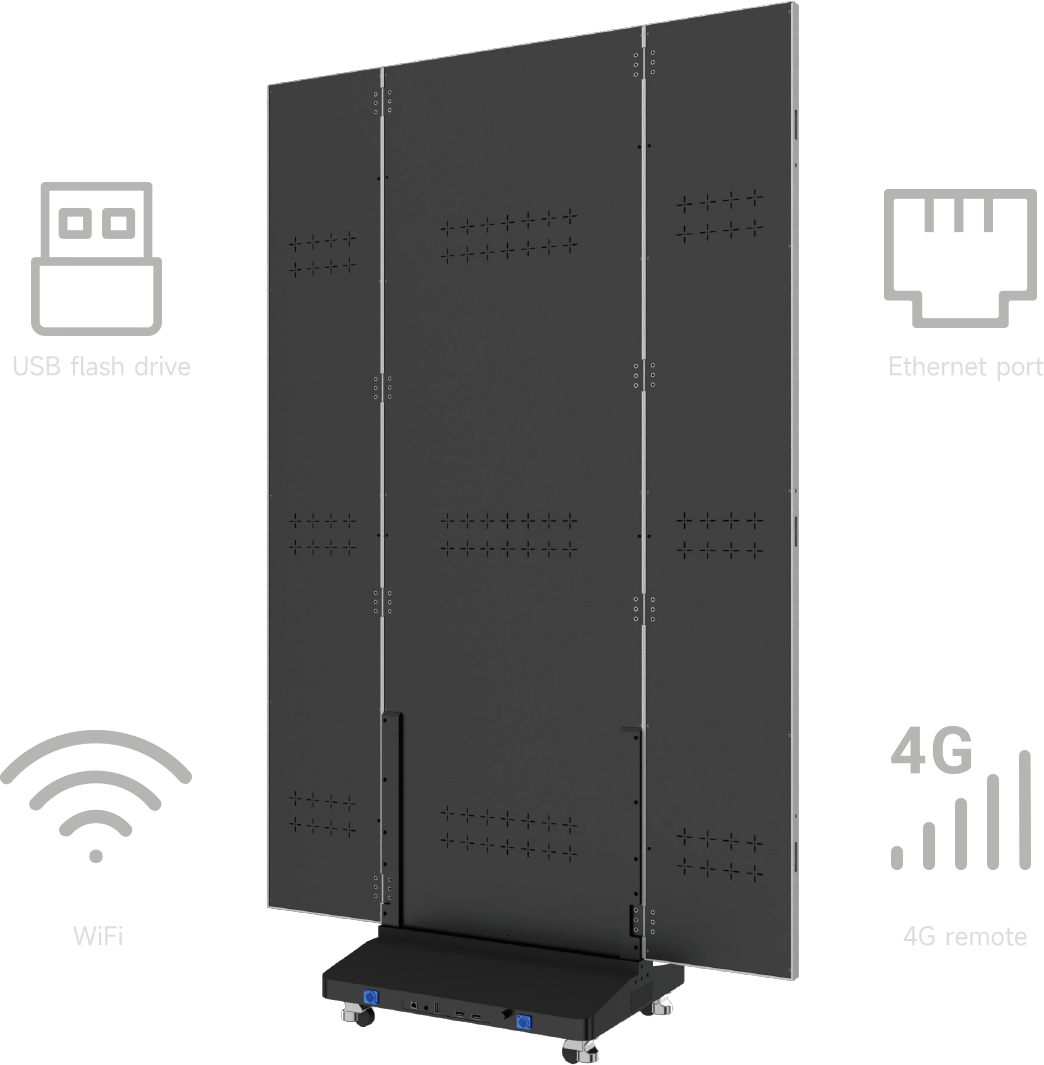

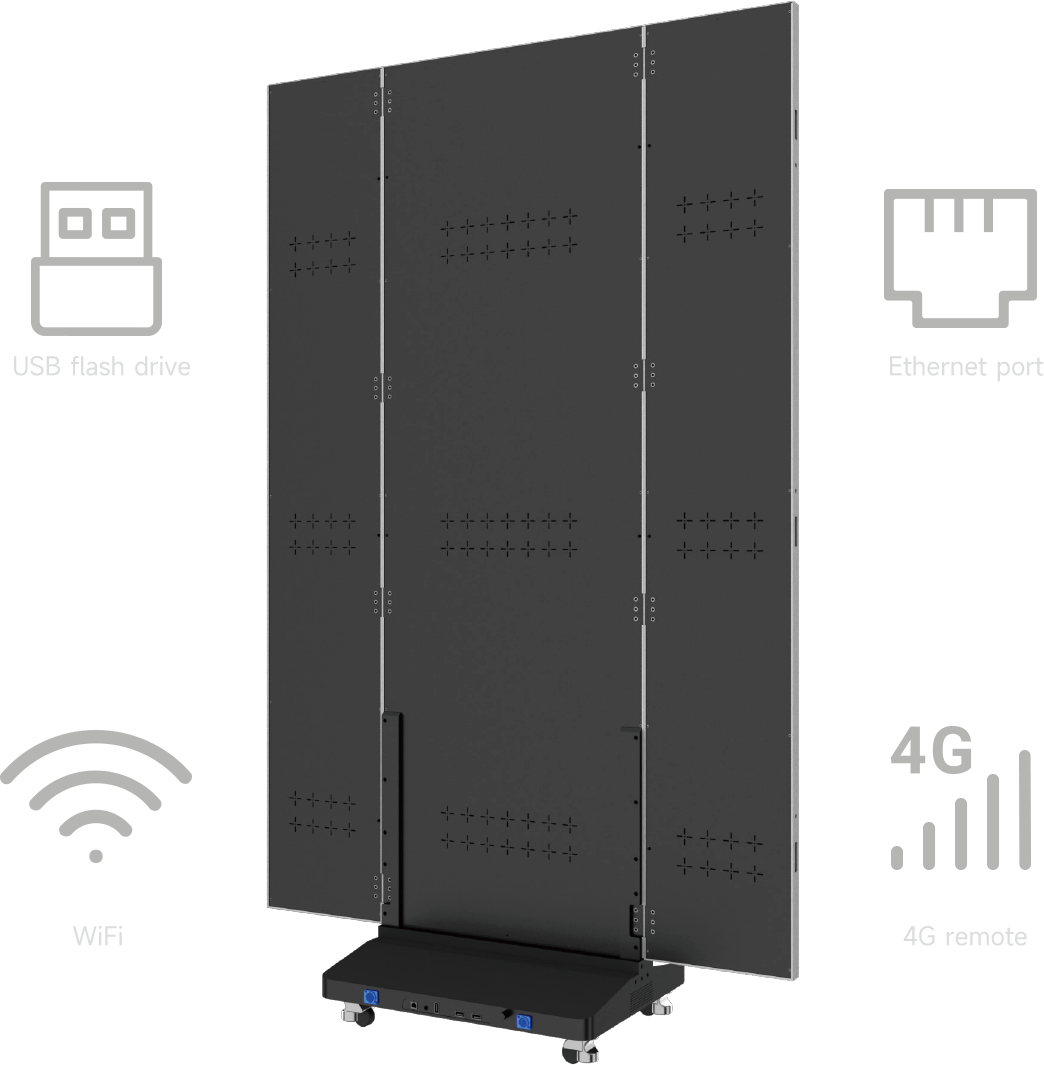

Multiple Transmission Options

The Series supports various standard transmission methods, including USB, WiFi, and Ethernet connections. Optional HDMI and wireless 4G modules are available to provide enhanced connectivity and greater flexibility for different application needs.

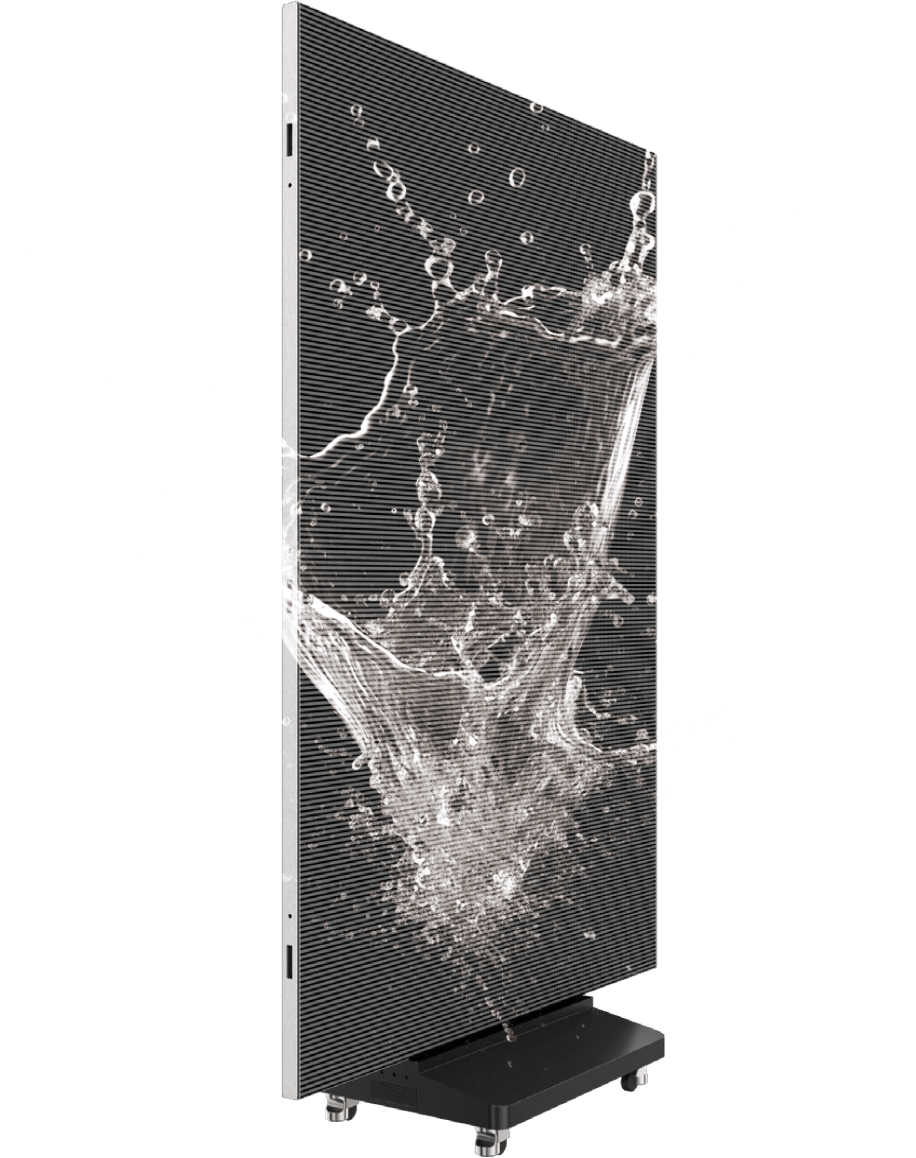

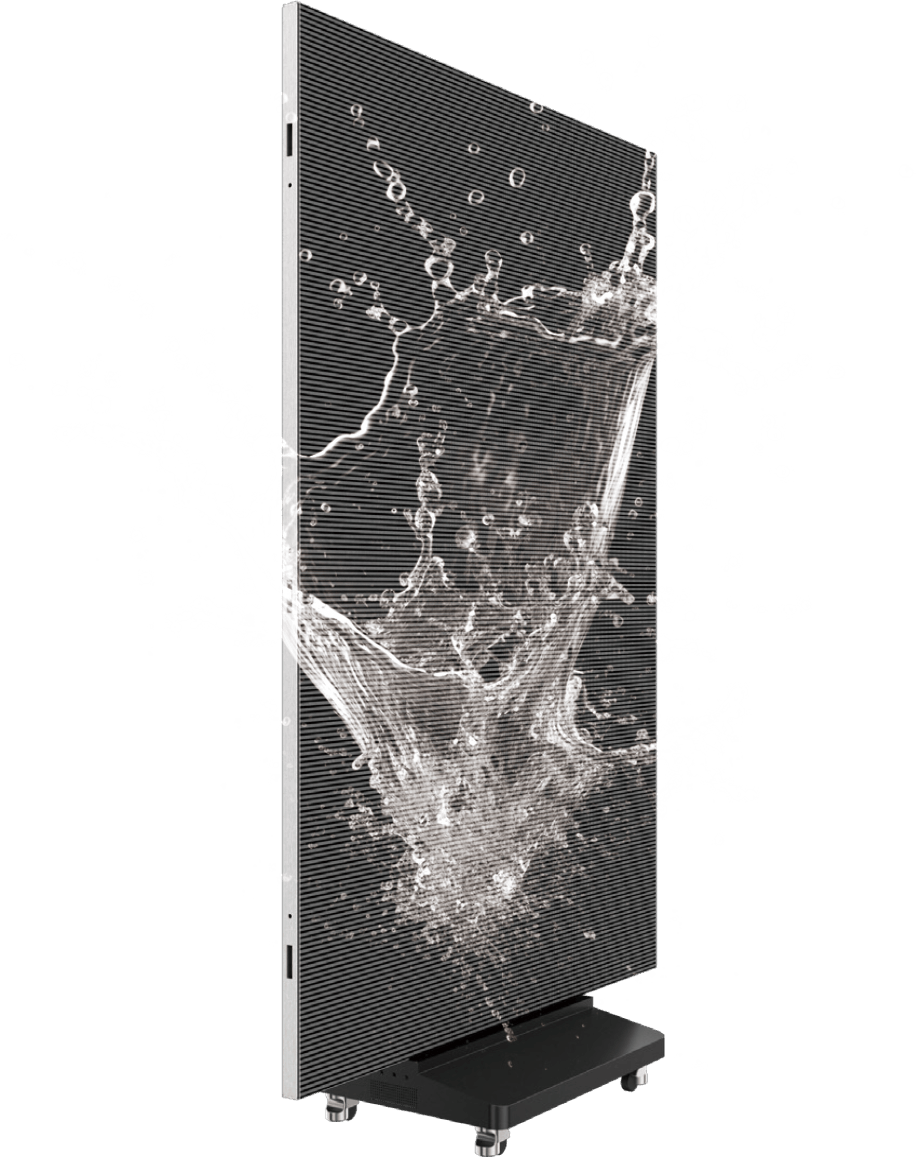

Floor-Tile-Grade GOB Technology

The standard non-foldable model supports optional GOB protection, while all foldable models are equipped with GOB technology as standard. This advanced surface protection provides excellent resistance against water splashes, scratches, impacts, and moisture, ensuring enhanced durability and reliable long-term performance.

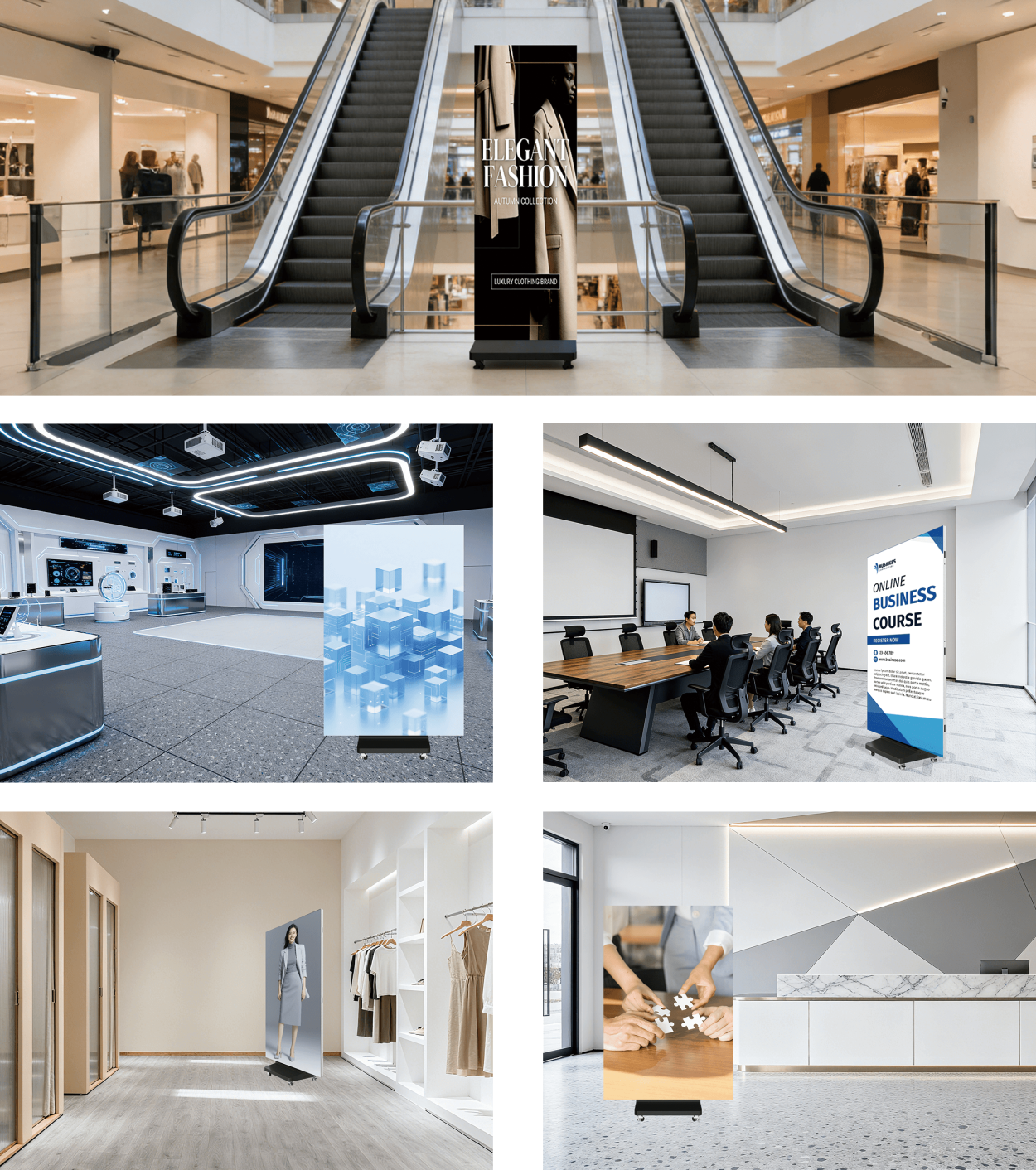

Application Scenarios

Suitable for shopping malls, retail stores, airports, hotels, exhibition venues, conferences, and other commercial advertising spaces, the LED poster display delivers flexible and impactful visual communication solutions.

Product Specifications

Non-Foldable Version
Items	MP12	MP15	MP18	MP25
Pixel Pitch (mm)	1.25	1.53	1.86	2.5
Pixel Construction	SMD 3-in-1 LED	SMD 3-in-1 LED	SMD 3-in-1 LED	SMD 3-in-1 LED
Module Resolution (W×H)	256×128	204×104	172×86	128×64
Module Size (W×H)	320×160mm
Module Weight (kg)	0.55
Module Arrangement (W×H)	2×12
Product Resolution (W×H)	512×1,536	416×1,248	344×1,032	256×768
Display Size (W×H)	640×1,920mm
Flatness Tolerance	0.5mm
Brightness (nits)	650
Grayscale (bit)	14–16 (adjustable)
Color Temperature (K)	3,200–9,000 (adjustable)
Viewing Angle (H/V)	160°/160°
Contrast Ratio	8,000:1
Input Voltage	AC110V–AC240V
Peak Power Consumption (W/PC)	1,000	680	680	680
Average Power Consumption (W/PC)	334	230	230	230
Control System	Synchronous / Asynchronous
Communication Method	APP / USB drive / Ethernet port / 4G remote
Interface	JS485×1, WiFi ×1, USB×1, HDMI×2
Built-in Speaker	50×12mm×2PCS
Audio	3.5 Audio Interface / Supports External Amplifier
Driving Method	Constant current
Frame Rate (Hz)	60
Refresh Rate (Hz)	≥3,840
Typical Lifespan Values (h)	50,000
Operating Environment	-40 ℃ ~ 50 ℃, 10% ~ 80% RH, no condensing
Storage Environment	-50 ℃ ~ 50 ℃, 10% ~ 85% RH, no condensing
