Lectern LED Display

Pixel Pitch (mm) : 1.86
Display Size (mm): 320×960 / 480×960 / 640×960

Integrated LED Lectern

A modern lectern equipped with a built-in LED display, combining traditional presentation functions with high-definition visual content. Ideal for displaying PPTs, videos, and data, it improves interaction and brings a more advanced, technology-driven experience to presentations.

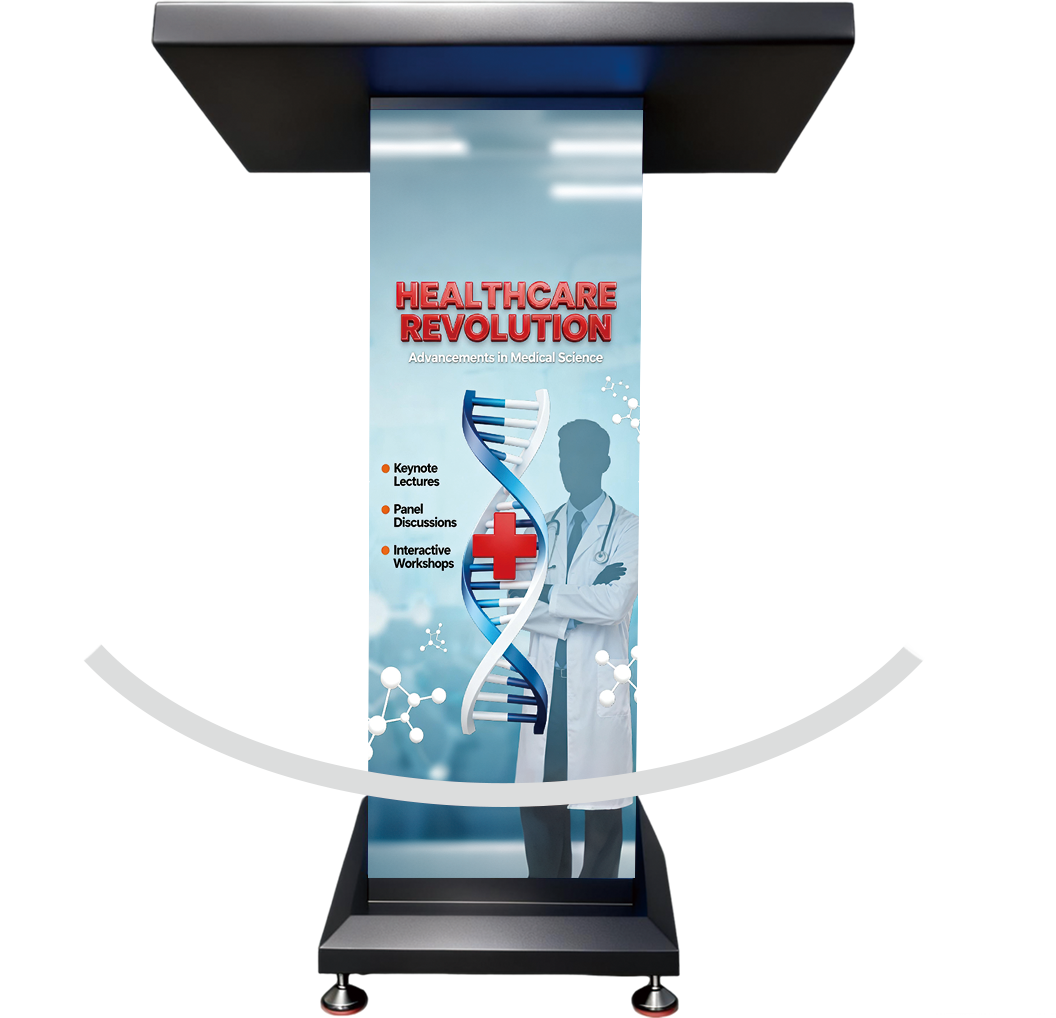

Wide Viewing Angle

Eliminating traditional viewing limitations, the display maintains consistent colors and brightness from different angles. No matter where the audience is seated, everyone can enjoy a clear and high-quality viewing experience.

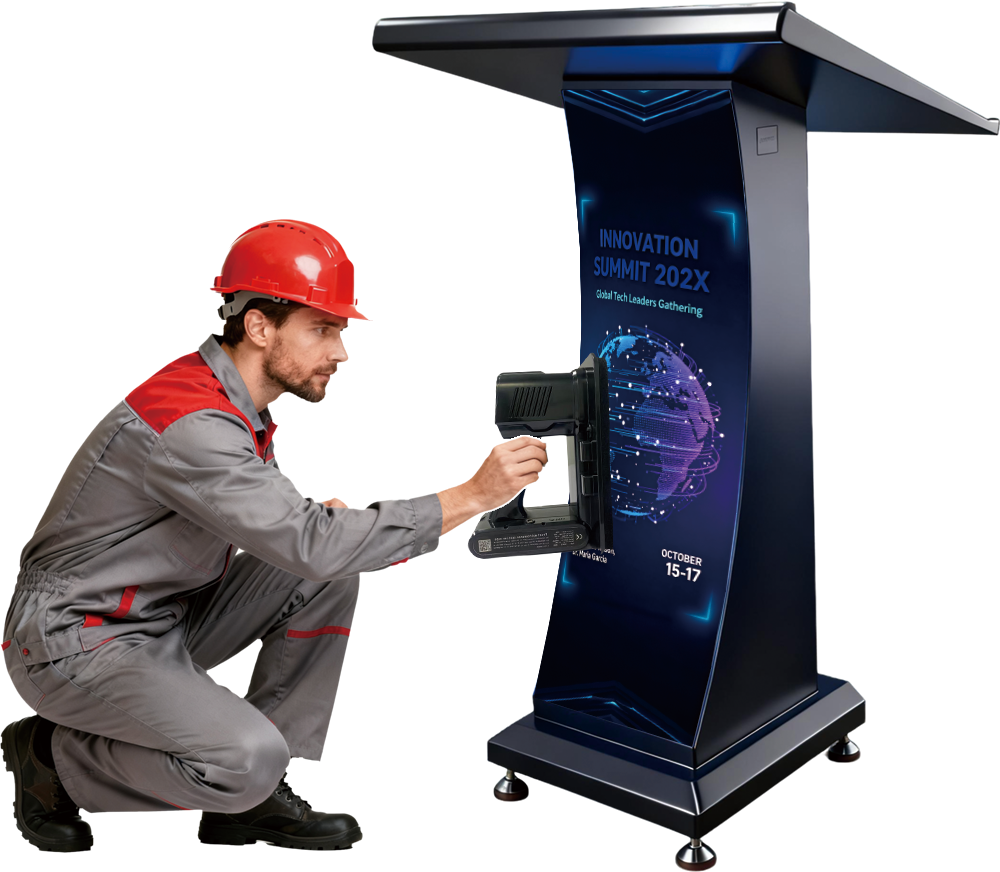

Front Maintenance

Designed with convenient front access, the display allows quick module replacement and efficient servicing, reducing maintenance time and improving overall operation efficiency.

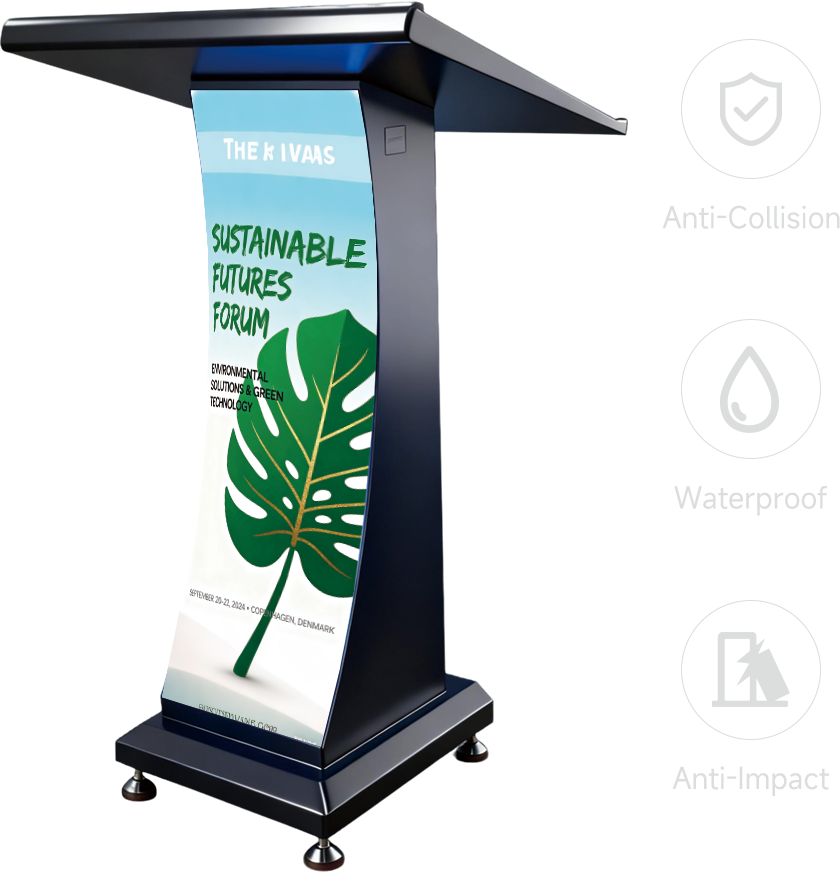

GOB Protection Technology

Featuring advanced GOB coating, the display offers enhanced protection against impacts, collisions, and water exposure. This durable surface technology improves reliability and ensures long-lasting performance in various environments.

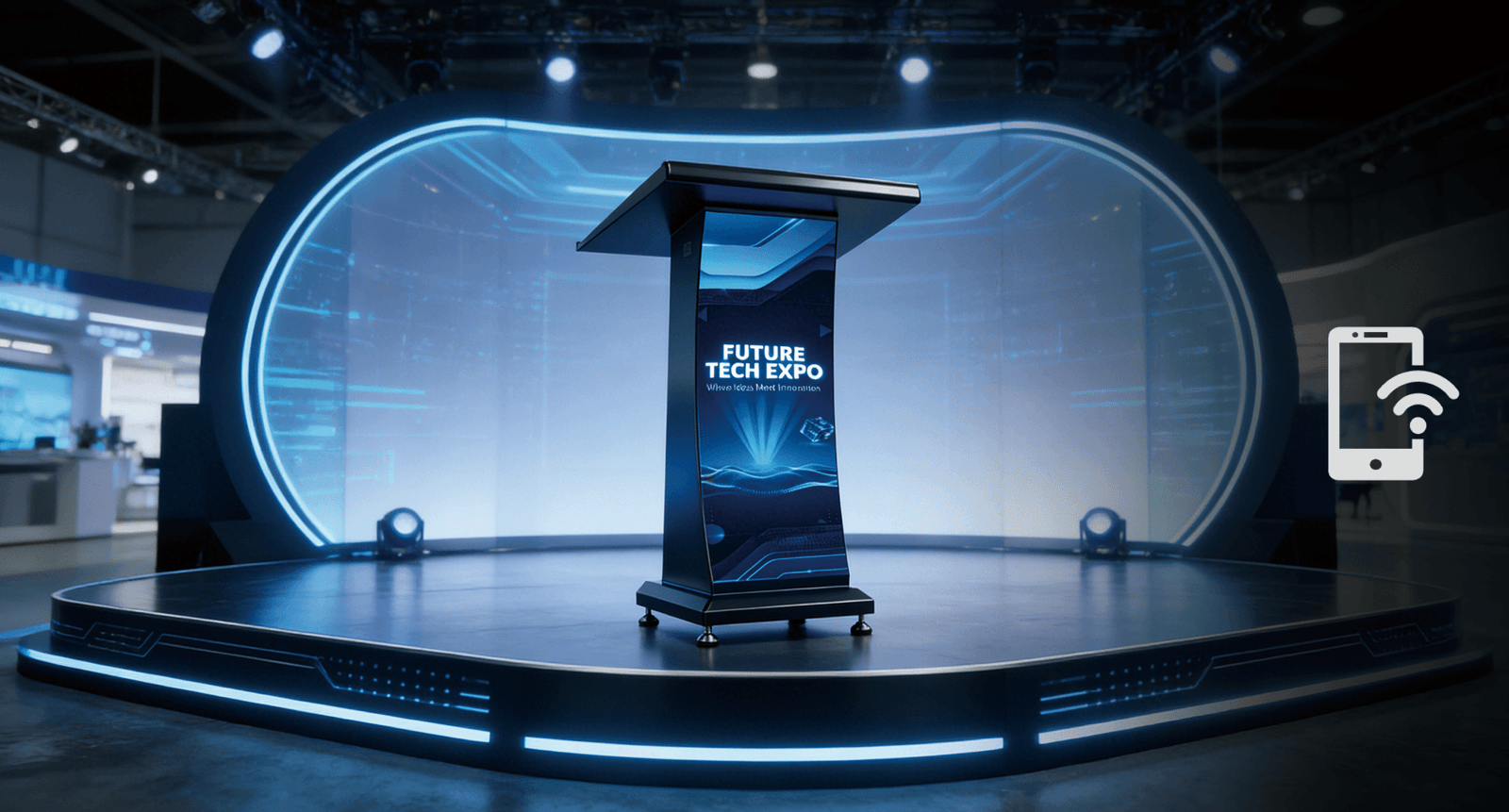

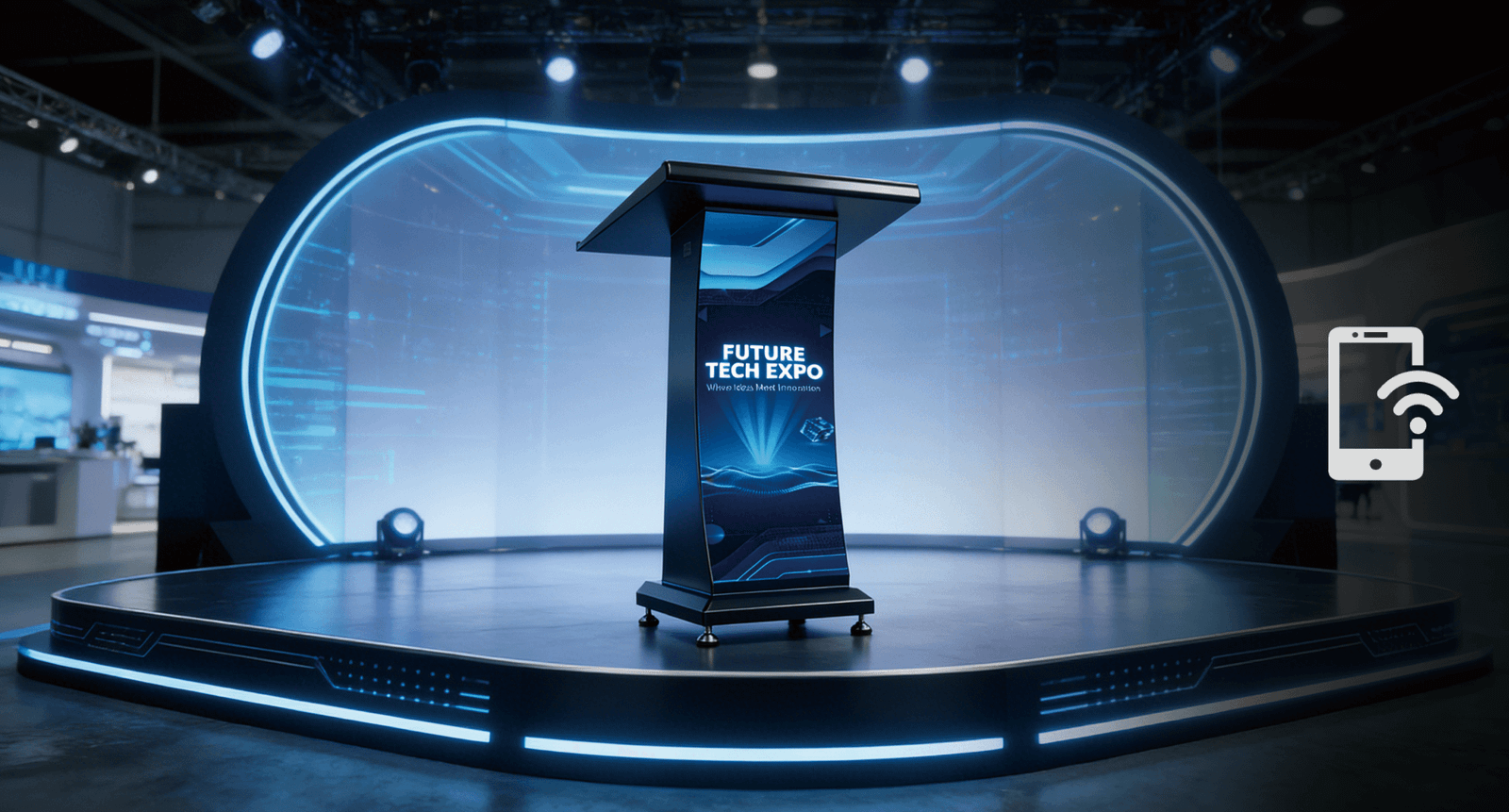

Smart WiFi Control

Designed for easy plug-and-play operation, the display supports wireless control through WiFi, hotspot, or mobile app. Users can upload media files and update content instantly with a simple one-click operation, making daily management quick and convenient.

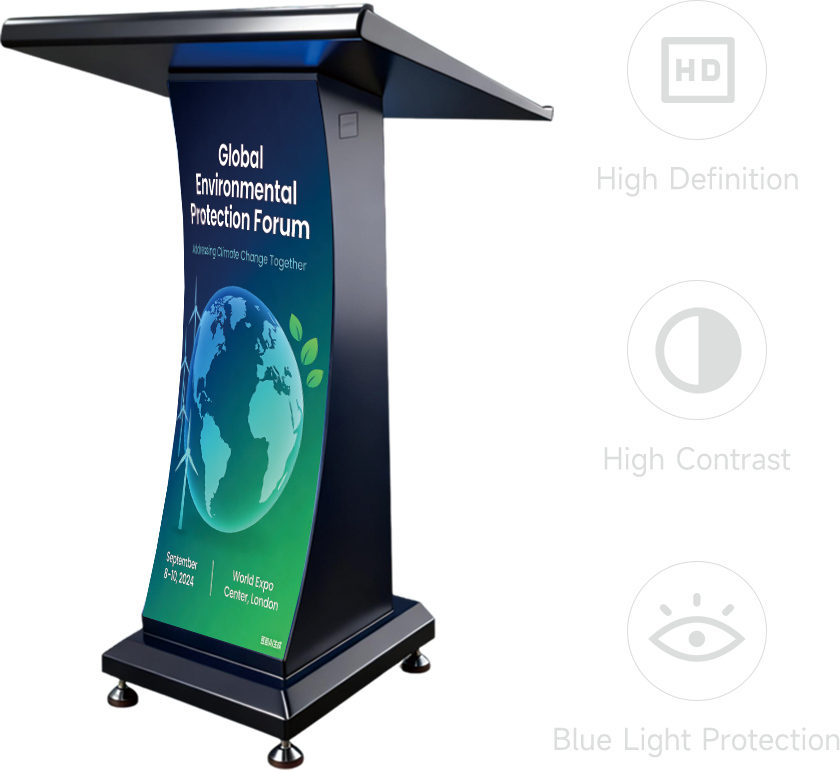

HD Display with Eye Protection

Delivering high-definition image quality with blue-light filtering and enhanced contrast, the display provides sharp, vibrant visuals while ensuring a more comfortable viewing experience during presentations.

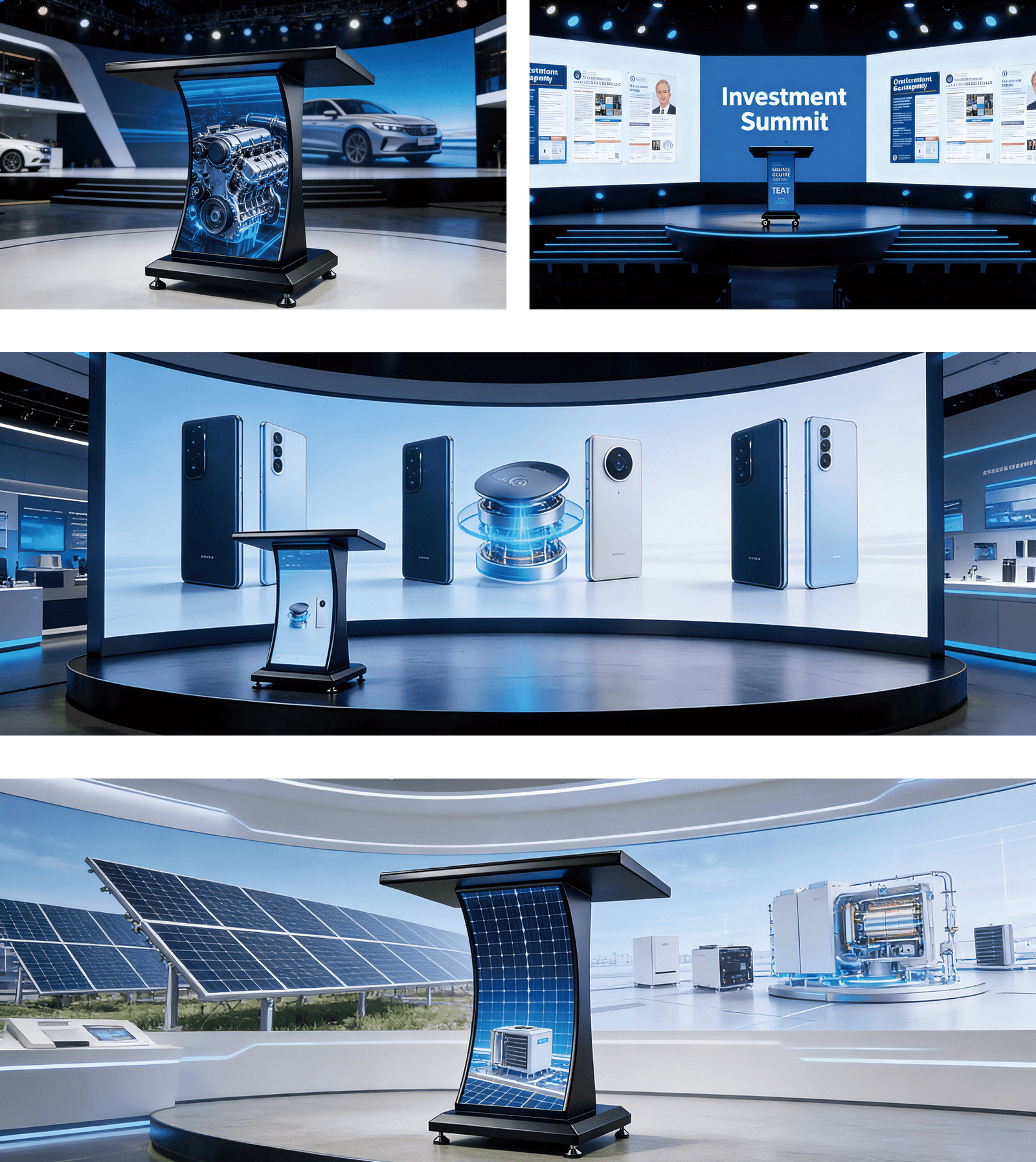

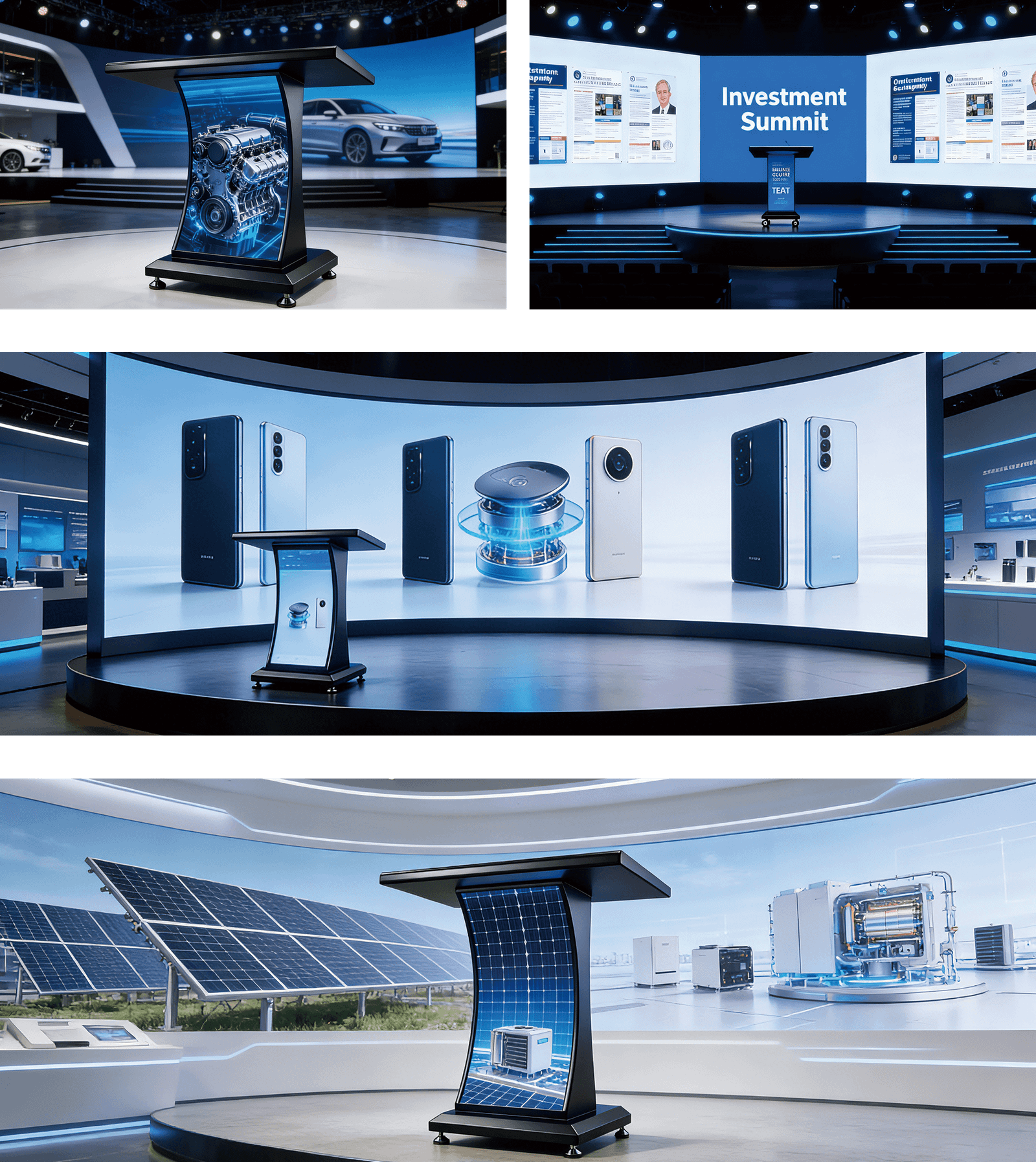

Application Scenarios

Perfect for conferences, speeches, presentations, product launches, and various professional events, the display provides an effective visual solution for modern communication and content sharing.



Product Specifications

Items L320 L480 L640
Pixel Pitch (mm) 1.86
LED Type SMD1212
GOB Yes
Module Size (mm) 320×160×5.2
Module Resolution (W×H) 172×86
Module Quantity 1×6 (Horizontal Arrangement) 3×3 (Vertical Arrangement) 2×6 (Horizontal Arrangement)
Screen Resolution (W×H) 172×516 258×516 344×516

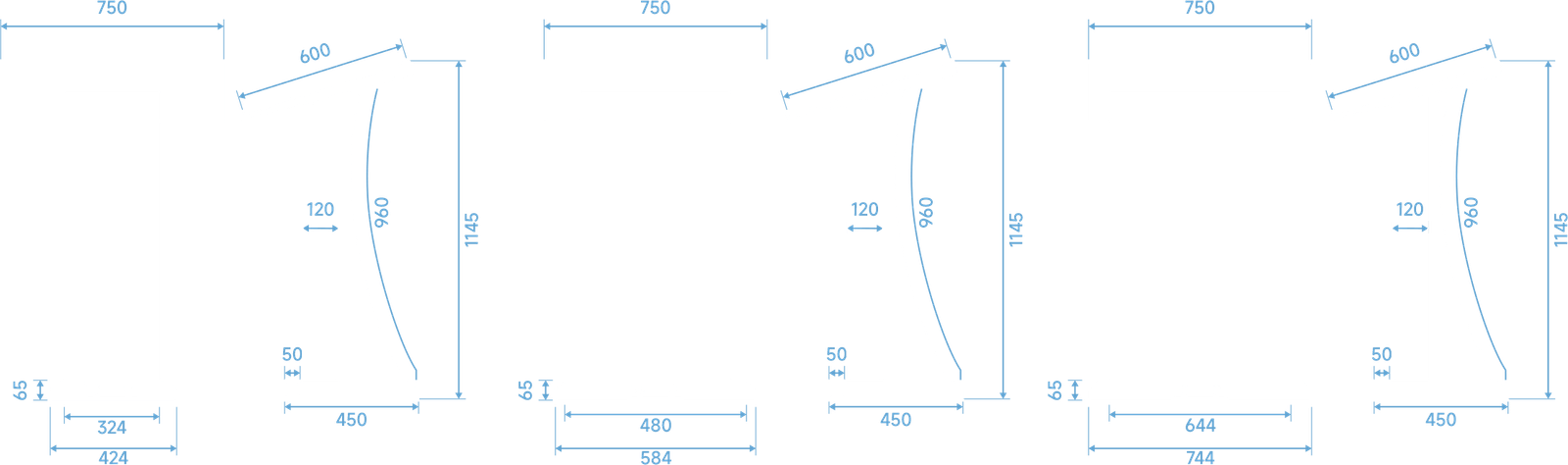

Display Size (mm) 320×960 480×960 640×960
Product Weight (kg) 32 40 45
Flight Case Packing Size (cm) 86×67×142
Approx. Total Weight (Incl. Flight Case, kg) 80 90 95
Wooden Case Packing Size (cm) 88×72×145
Approx. Total Weight (Incl. Wooden Case, kg) 75 85 90
Scan Mode 1/43
Brightness (cd/m²) 500–650
Refresh Rate (Hz) 3,840
Grayscale (bit) 12-16
Maintenance Front
Control System Novastar
Protection Level IP43 (front)
Average Power Consumption (W/PC) 200 200 400
Input Voltage AC100V–AC240V, 50–60Hz
Operating Environment -20 ℃ ~ 60 ℃, 10% ~ 85% RH
